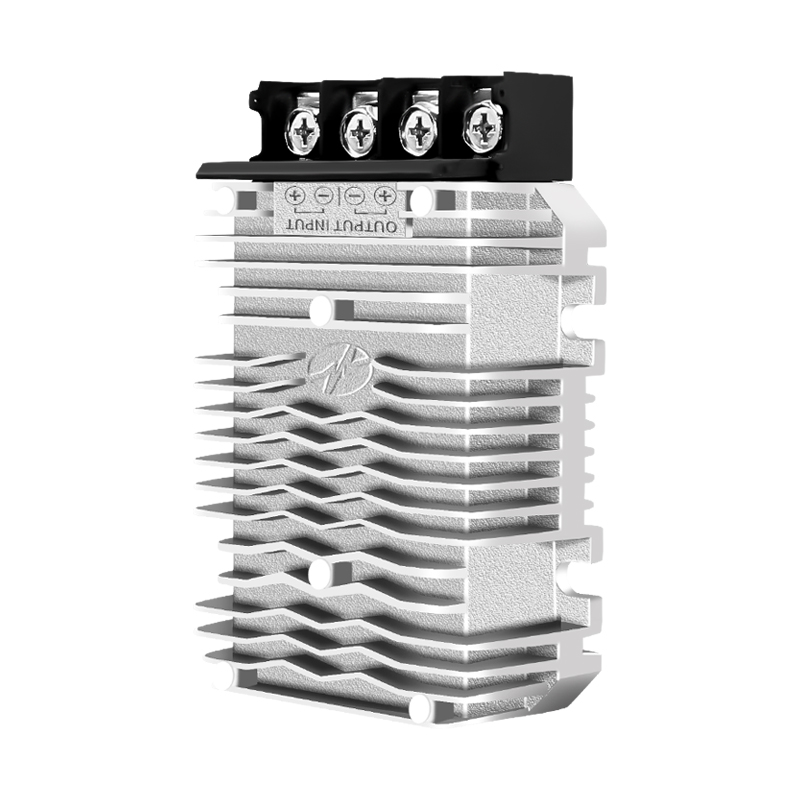

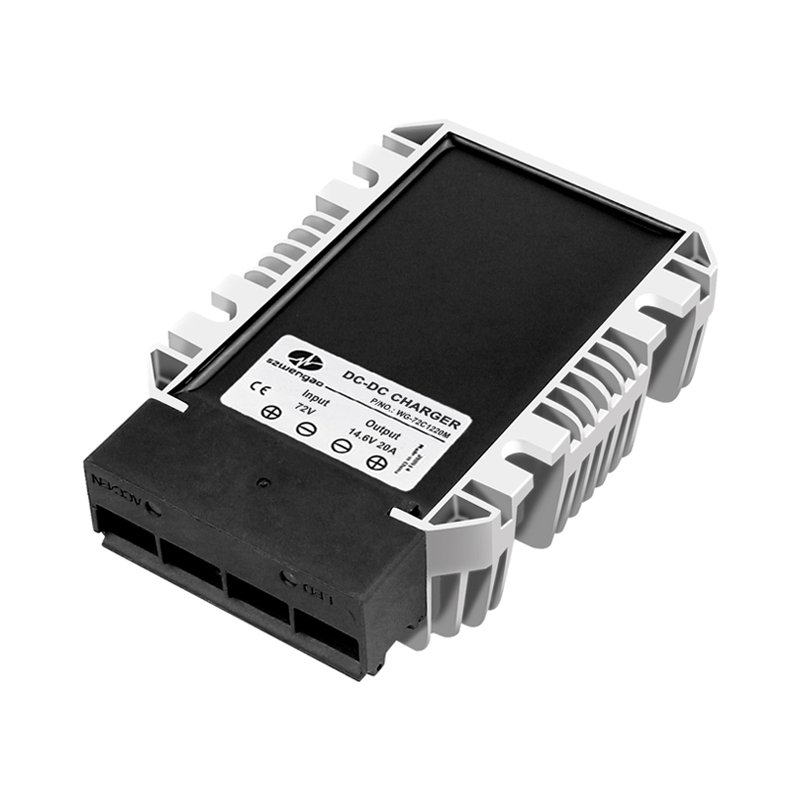

Waterproof DC 18-90V 24V 36V 48V 60V 72V to DC 12V 20A Lithium Battery Chargers with Ignition Wire
Applications including vehicles, RVs, campervans, boats, telecommunications, alternative energy, and dual battery system etc. As you know, all the engine vehicles have an alternator. It is providing power to the normal operation electrics and recharge the starter battery of the vehicle. The alternator will be charging the starter battery when you driver, and once the starter battery is charged full, the work of alternator is mostly done. But excess electricity generated and not used by the vehicles running electric equipment, in effect it is wasted. For fishing boats, campervans and RVs, a DC-DC battery charger allows both the starter battery and auxiliary batteries to charge at the same time when the vehicles engine is running.
- Features
- Parameters Download
- Inquiry
- Related Products
20A constant charge current
Special design for LiFePO4 and LiMn2O4 batteries.
Step-down voltage from DC 18-90V to DC 14.6V
100% full stable current output
100% full burn-in test
Full charge current design and efficiency up to 96%
Support -40 °C environment
Provide LV, OT, OC(@CC model), and short circuit protections
Remote ON/OFF control (optional)
Waterproof, Dust-proof, Shockproof design suit for much environment
DC output terminals diversify, suit for any battery system
Support super capacitor charge, and 0V start charging
Non-isolated between input and output
Design meeting by RoHS / CE
2 Years warranty
Provide LED to show charging state, and natural cooling
Small volume, light weight, easy and quick installation
Features:
Parameters Download:
| Specifications | Certificates | User Manual | Dimension Files | HD Photos |
 Instruction Manual |
2D Size (A)
|
|
||
|
|
||||
|
|
||||
|
|
