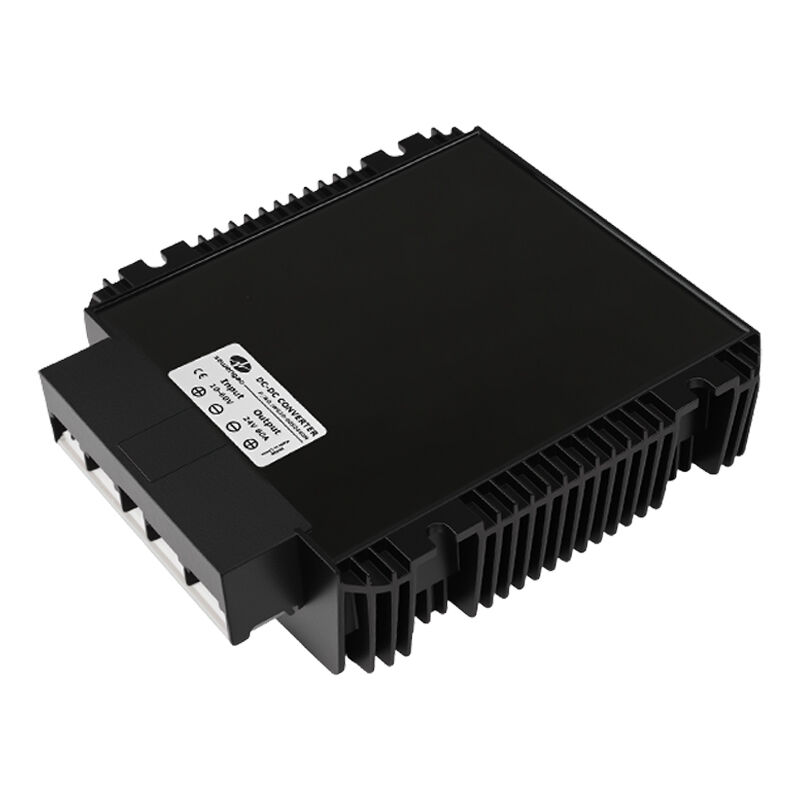

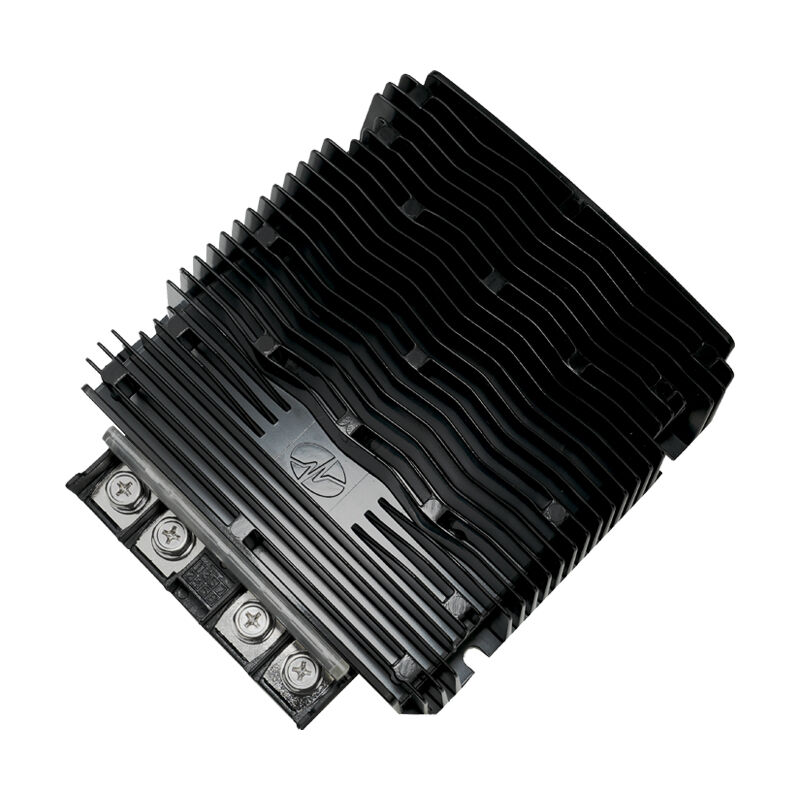

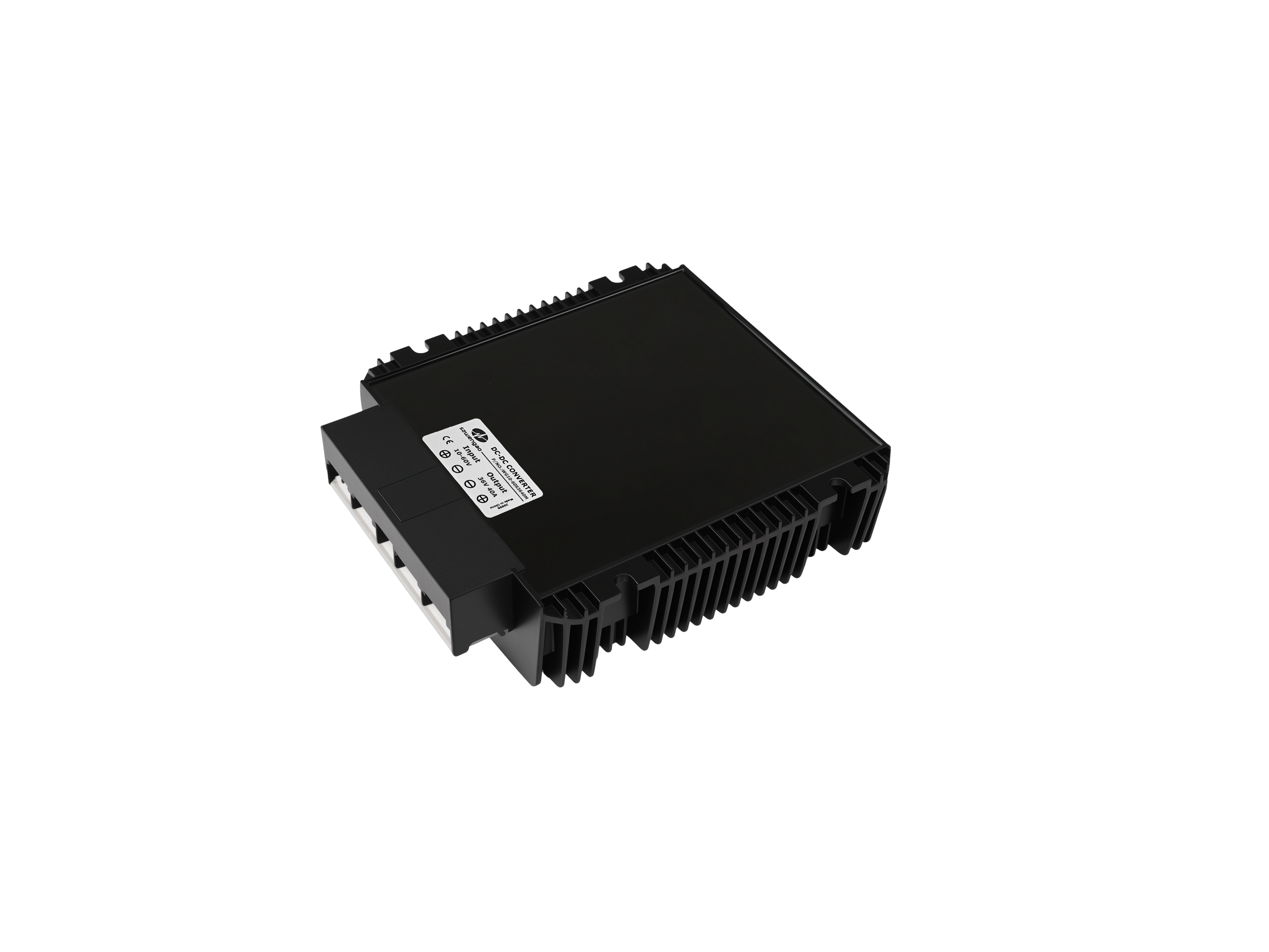

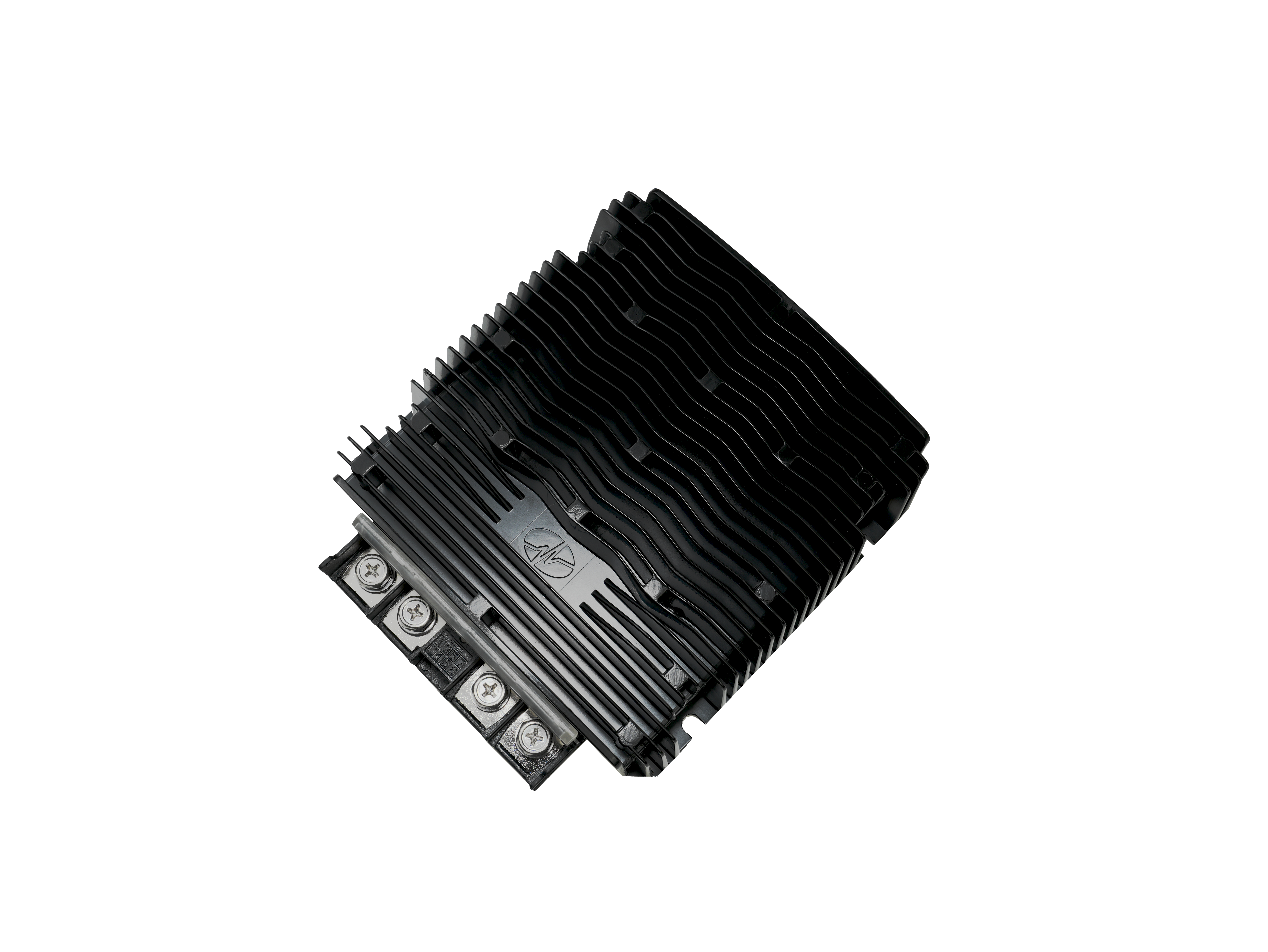

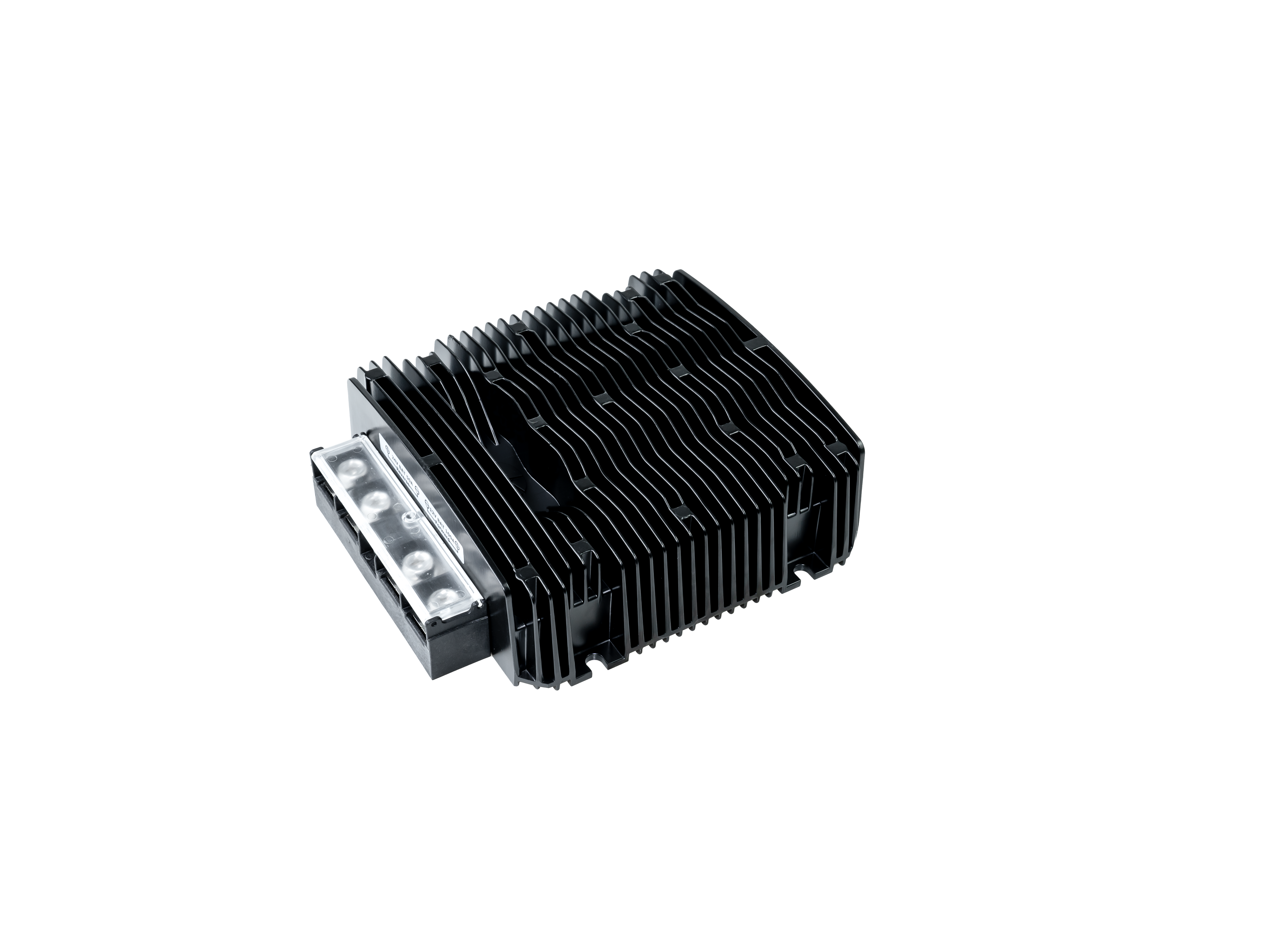

Boost Buck Converter DC 10-60V to 36V 40A Power Supply Regulator Module 1440W High Power Voltage Step Up Down Converters for Car, RV, Marine, Drone, Solar System
WG10-60S3640M is a fully regulated switch-mode power converter that utilizes synchronous rectification technology. It is designed to power 36V equipment with an input voltage range of 10–60V. This unit features a common negative design (non-isolated module) and is compatible with nearly all 36V applications. As a reliable, efficient and robust DC/DC converter, it is ideal for cars, bicycles, boats, drone, LED lighting, general vehicles, power stations, solar and wind systems, and more. Additionally, it delivers excellent protection against water, vibration and shock.
- Features
- Parameters Download
- Inquiry
- Related Products
Features:
· Operating Current: 0 ~ 40A
· Wide Input Voltage Range: 10~60V
· 100% Stable Full Current Output
· 100% Full Load Burn-in Test
· High Efficiency: Up to 97.5%
· Operable in -40 °C Environments
· Integrated Over-Temperature, Over-Load, Under-Voltage, and Short-Circuit Protections
· Remote ON/OFF Control (Optional)
· Built-in RS485 Communication
· Waterproof, Dustproof & Shockproof Design, Suitable for Diverse Harsh Environments
· Non-Isolated Input-Output Configuration
· RoHS & CE Compliant Design
· 2-Year Warranty
· Compact Size with Easy & Quick Installation
Parameters Download:
| Specifications | Certificates | User Manual | Dimension Files | HD Photos |
 Instruction Manual |

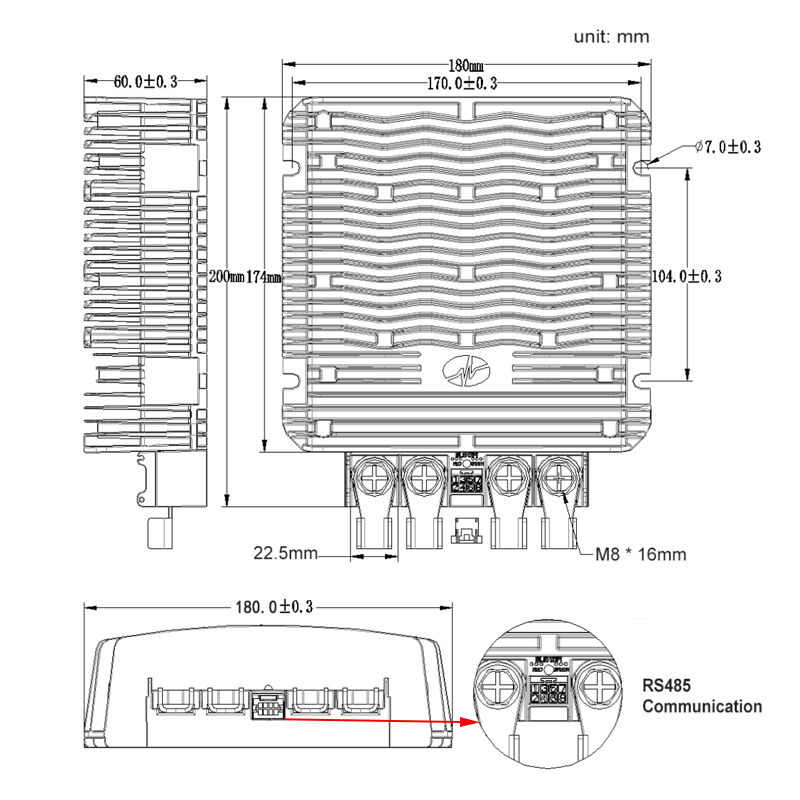

2D Size (A)
|
|
||
|
|
||||
|
|
