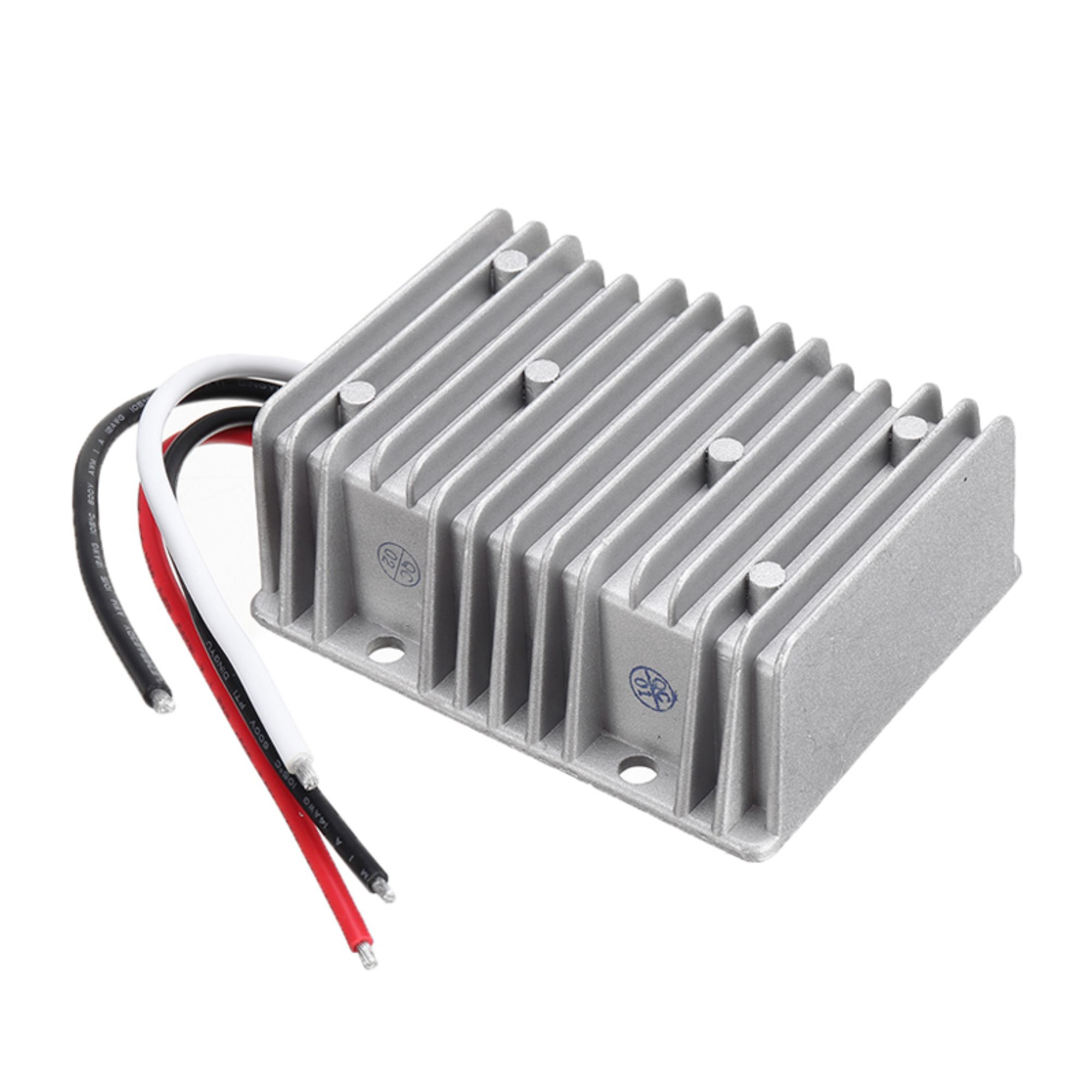

Voltage Stabilizer 8-40V to 12V 25A 300W Boost/Buck DC DC Converter 12 Volt Step Up Down Transformer
DC/DC converter is a voltage regulator. It will take a DC input voltage, filter it and will produce a stabilized DC output voltage. such as WG8-40S1225, it is from DC 8-40v input to a DC 12 volt output, and automatic work from 0 to 25 Amps current.
WG8-40S1225 is a fully regulated switchmode power converter that uses a synchronous rectification technology, designed to use of 12v equipments at 8-40V input. This unit have common negative (non-isolated module), but can be used for almost all 12 volt applications. It is a reliable, efficiency, robust, and attractive DC/DC Converter for Cars, Bicycles, Boats, LED, Vehicles, Power stations and Solar Wind system etc. Also it is relatively immune to waterproof, vibration and shock.
- Features
- Parameters Download
- Inquiry
- Related Products
Working current 0-25 Amps
Wide input voltage range 8-40V
100% full stable current output
100% full load burn-in test
High efficiency up to 96%
Support -40 °C environment
Short circuit, Over load, Low voltage protections
Remote ON/OFF control (optional)
Waterproof, Dust-proof, Shockproof design suit for much environment
Non-isolated between input and output
Design meeting RoHS / CE
2 Years warranty
Small volume, easy and quick installation
Features:
Parameters Download:
Specifications | Certificates | User Manual | Dimension Files | HD Photos |
CE | Instruction Manual | 2D Size (A) | photo1 | |
RoHS | photo2 | |||
photo3 | ||||
photo4 |
